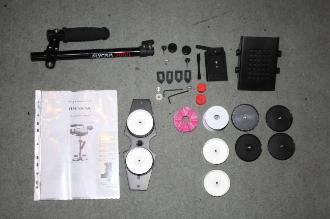

Flycam 3000 Deconstruction
Matthew Fryer
The Flycam 3000 is a semi-professional camera steadying system. Although it is less effective and harder to use that a steadi-cam, for it's price and compact nature it is an invaluable piece of equipment for any DSLR filmmaker.
Although setting up the Flycam is a bit of a chore, the results are worth it. With the Flycam the operator is less limited by the shortcomings of DSLRs, meaning that more exotic shots and ingenious techniques can be attempted.
Setting up the Flycam
The Flycam works using a counterweight system that absorbs shock via a gimbal system. The first step in setting up is making sure that the weight on top of and underneath the gimbal. This is achieved via extended/retracting the pole of the Flycam and by adding/removing weights on the bottom mount. This is to ensure that the system does not rock back and forth when moving, creating something known as the 'pendulum' effect.
Next you must make sure the center of gravity of the camera is as close as possible to the center of gravity of the Flycam, this is achieved by bolting the camera to the hole in the head mount that is closest. Then you must fine tune or tweak the head mount in order to counter which way the Flycam leans. This is done via a collection of screws on the mount, allowing for left/right and forward/back adjustments.
 |  |
If done correctly your Flycam should remain relatively vertical when moved sharply left to right and forwards and backwards. Below is a video example of what can be achieved with the Flycam after a few hours of practice. A better quality video with an interesting subject will be uploaded soon.
